• Pitch 3.175 mm

  • 3.175 x 6.35 mm Dip Type

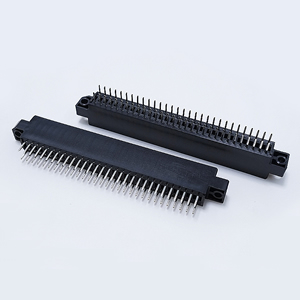

    3000 Series 3.175 x 6.35 mm Dip Type

    DESCRIPTION:
    Pitch 3.175 mm Straight Dip Type

    Mounting Options :
    No mounting Ears, Mid Mounting Ears, Low Mounting Ears

    FEATURE:
    Insulator Material:
        Glass-Filled PBT UL94V-0
    Contact Material:
        Phosphor Bronze
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        50μ" Nickel Underplating

    SPECIFICATION:
    Current Rating: 3 Amperes
    Contact Resistance: 20 Milliohme Max.
    Insulation Resistance: 5000 Megaohms Min.
    Voltage Rating: 800VAC 1 Minute
    Operation Temperature: -55℃ to + 105℃
    Insulation Farce: 412 grams max per pair
    Withdrawal Force: 32 grams min per pair

    Inquiry Info. Drawing(.PDF)

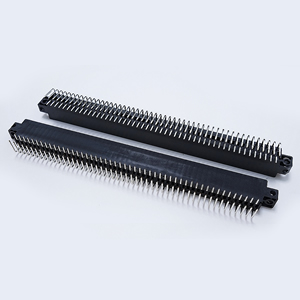

  • 3.175 mm Right Angle Type with Mid Mounting Ears

    3200 Series 3.175 mm Right Angle Type with Mid Mounting Ears

    DESCRIPTION:
    Pitch 3.175 mm Right Angle Type
    Mid Mounting Ears

    FEATURE:
    Insulator Material:
        Glass-Filled PBT UL94V-0
    Contact Material:
        Phosphor Bronze
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        50μ" Nickel Underplating

    SPECIFICATION:
    Current Rating: 3 Amperes
    Contact Resistance: 20 Milliohme Max.
    Insulation Resistance: 5000 Megaohms Min.
    Voltage Rating: 800VAC 1 Minute
    Operation Temperature: -55℃ to + 105℃
    Insulation Farce: 412 grams max per pair
    Withdrawal Force: 32 grams min per pair

    Inquiry Info. Drawing(.PDF)
