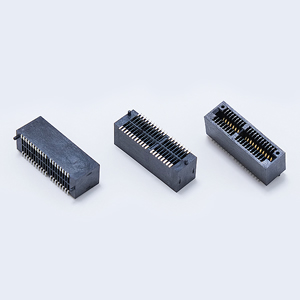

7000M Series
1.00 mm SMT Type
DESCRIPTION:
Pitch 2.54 mm Vertical Dip Type
FEATURE:
Insulator Material:
LCP UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 1.1 Amperes
Contact Resistance: 30 Milliohme Max.
Insulation Resistance: 1000 Megaohms Min.
Voltage Rating: 500VAC 1 Minute
Operation Temperature: -55℃ to + 105℃
