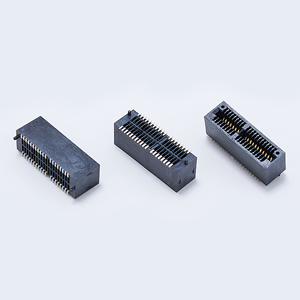

7000M Series 1.00 mm SMT Type

DESCRIPTION:
Pitch 2.54 mm Vertical Dip Type

FEATURE:
Insulator Material:
    LCP UL94V-0
Contact Material:
    Phosphor Bronze
Plating:
    Selective Gold Plating On Contact Area
    100μ" Tin Plating On Tail Section
    50μ" Nickel Underplating

SPECIFICATION:
Current Rating: 1.1 Amperes
Contact Resistance: 30 Milliohme Max.
Insulation Resistance: 1000 Megaohms Min.
Voltage Rating: 500VAC 1 Minute
Operation Temperature: -55℃ to + 105℃
