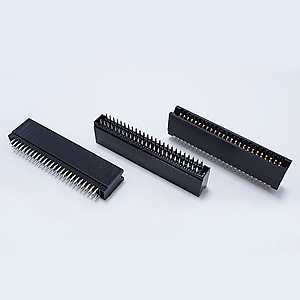

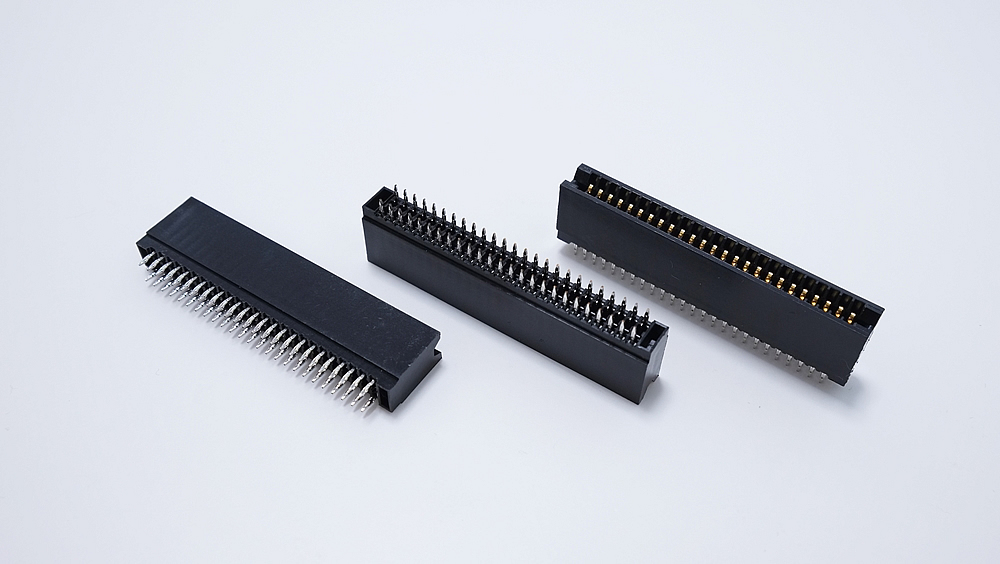

    1100 Series 2.54 x 5.08 mm Press-Fit Type

    DESCRIPTION:
    Pitch 2.54 mm Press-Fit Type

    FEATURE:
    Insulator Material:
        Glass-Filled PBT UL94V-0
    Contact Material:
        Phosphor Bronze
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        50μ" Nickel Underplating

    SPECIFICATION:
    Current Rating: 3 Amperes
    Contact Resistance: 10 Milliohme Max.
    Insulation Resistance: 5000 Megaohms Min.
    Dielectric Withstanding Voltage: 1200VAC 1rms at Sea Level Between Adjacent Contacts
    Operation Temperature: -55℃ to + 105℃

    RECOMMENDED PCB HOLE
    Drilled Hole: 1.15+0.00/-0.03 mm
    Copper Plate 0.025~0.075 mm
    Tin/Lead Plating
    Finish Hole Diameter: 1.00+0.05/-0.02 mm

    High Profile Insulator Type (.PDF) Low Profile Insulator Type (.PDF)
