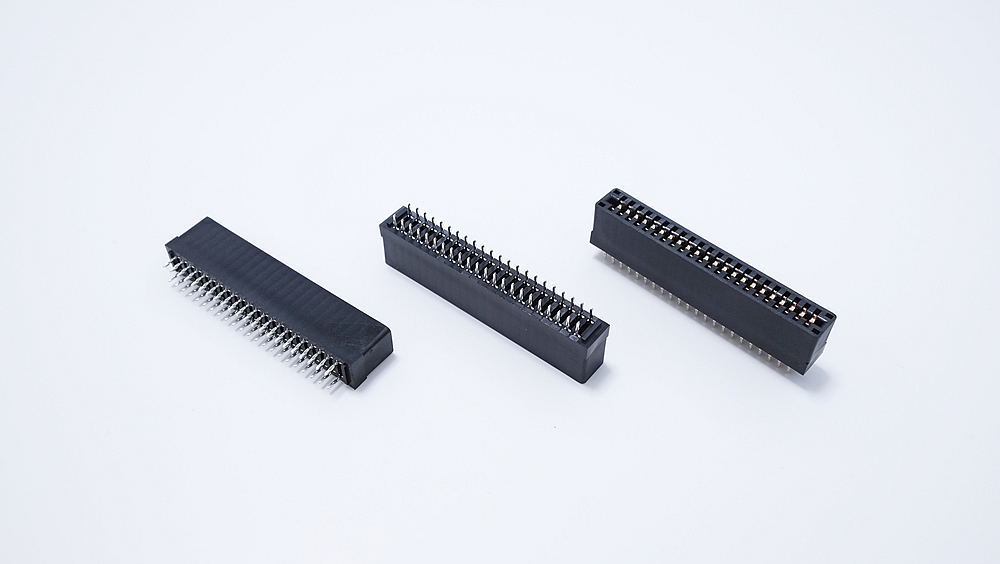

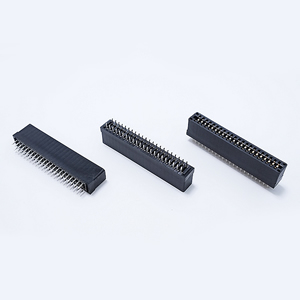

Products Card Edge Connector Press-Fit Type 3100 Series 3.175 x 6.35 mm Press-Fit Type DESCRIPTION:Pitch 3.175 mm Press-Fit TypeFEATURE:Insulator Material: Glass-Filled PBT UL94V-0Contact Material: Phosphor Bronze Plating: Selective Gold Plating On Contact Area 100μ" Tin Plating On Tail Section 50μ" Nickel UnderplatingSPECIFICATION:Current Rating: 3 AmperesContact Resistance: 20 Milliohme Max.Insulation Resistance: 5000 Megaohms Min.Voltage Rating: 800VAC 1 MinuteOperation Temperature: -55℃ to + 105℃Insertion Force: 412 grams Max. Per PairWithdrawal Force: 32 grams Min. Per PairRECOMMENDED PCB HOLEDrilled Hole: 1.15+0.00/-0.03 mmCopper Plate 0.025~0.075 mmTin/Lead PlatingFinish Hole Diameter: 1.00+0.05/-0.02 mm Drawing(.PDF) Please write down your comment on this product, and click Add to Inquiry List for inquiry Add to Inquiry List Review Inquiry List Back
