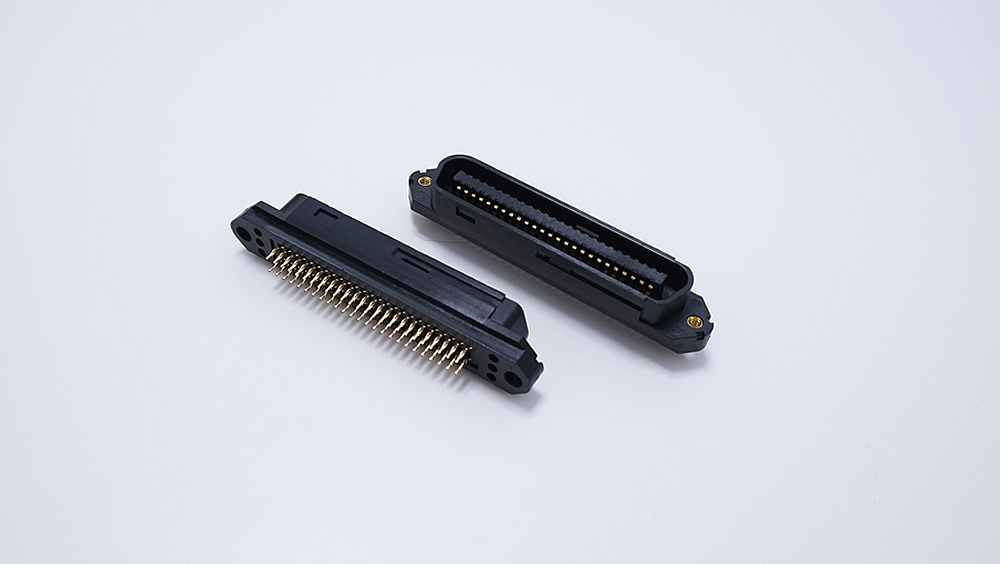

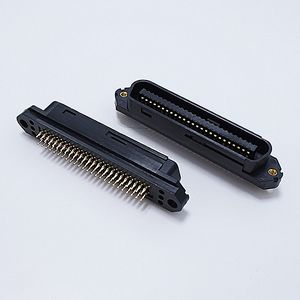

    P610 - Press-Fit Type

    FEATURE:
    Insulator Material:
        PBT + 30% G/F UL94V-0
    Contact Material:
        Phosphor Bronze
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        50μ" Nickel Underplating

    SPECIFICATION:
    Current Rating: 3 Amperes
    Insulation Resistance: 5000 Megaohms Min.
    Dielectric Withstanding Voltage: 1000VAC RMS
    Operation Temperature: -55℃ to + 105℃
    Insulation Farce: 32 lbs
    Withdrawal Force: 7 lbs

    *Available in 50 & 64 Pin

    Rounded Edge Type(.PDF) Square Edge Type(.PDF)
