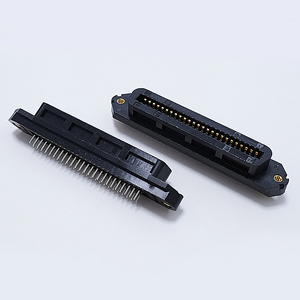

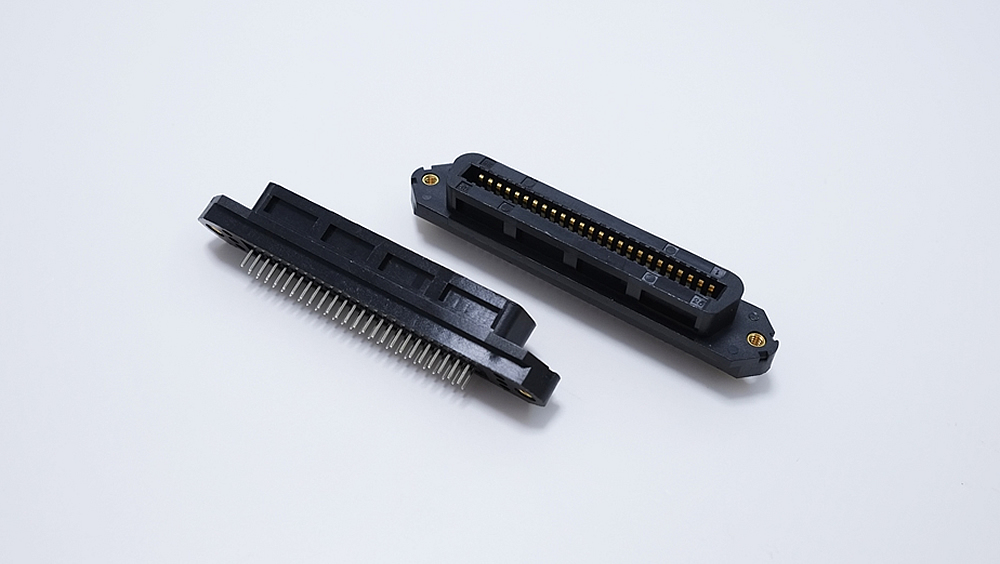

S600 - Dip Type

FEATURE:
Insulator Material:
    PBT + 30% G/F UL94V-0
Contact Material:
    Phosphor Bronze
Plating:
    Selective Gold Plating On Contact Area
    100μ" Tin Plating On Tail Section
    50μ" Nickel Underplating

SPECIFICATION:
Current Rating: 3 Amperes
Insulation Resistance: 5000 Megaohms Min.
Dielectric Withstanding Voltage: 1000VAC RMS
Operation Temperature: -55℃ to + 105℃
Insulation Farce: 30 lbs
Withdrawal Force: 10 lbs

*Available in 50 & 64 Pin
