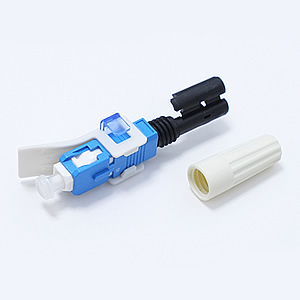

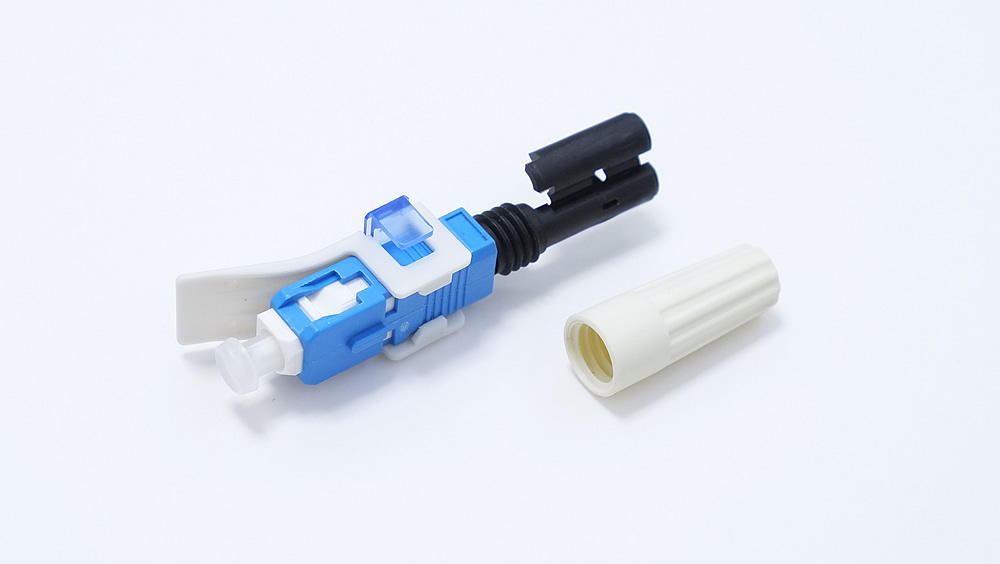

Products Others Fiber Optic Connector FMC-SC -01 SC Connector FEATURE: ˙Adopt standard parts ˙High-density docking ( Ceramic Ferrule ) ˙PC, UPC and APC grind ˙Low Insertion Loss ˙High Return Loss ˙Good Compatibility ˙Good Repeatability ˙Commercial operating case temperature˙Range: -40℃ to +85℃ ˙RoHS-6 Compliant ( lead-free) ˙According with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, APPLICATIONS: ˙Telecommunications networks ˙Optical access network ˙Optical communication system ˙Test equipment ˙Optical LAN ˙Optical CATV產品介紹: 光纖快速連接器(又叫光纖現場連接器),光纖快速連接器是用於現場組裝使用的光纖連接器,廣泛適用於光纖到戶(FTTH)的接入光網路中。這種連接器在安裝過程中不需要任何膠粘和固化過程. 這為工程師進行線路安裝、維護和修理,以及光纖到戶工程提供了更快捷的幫助。產品技術參數: 項目 技術參數 使用光纜 2.0mmx3.0mm蝶形光纜 插頭類型 SC/PC 光纖直徑 0.125mm 光纖模式 單模 插入損耗 < 0.5 dB (典型值0.2 dB) 回波損耗 ≥ 40 dB 抗拉強度 > 30 N 重複使用次數 > 5 次 機械耐久性(500次) △ IL ≤ 0.3 dB 跌落試驗 △ IL ≤ 0.3 dB 高低溫循環 △IL<0.3dB, △RL<5dB 使用溫度 -40℃ ~ +85℃ Please write down your comment on this product, and click Add to Inquiry List for inquiry Add to Inquiry List Review Inquiry List Back
