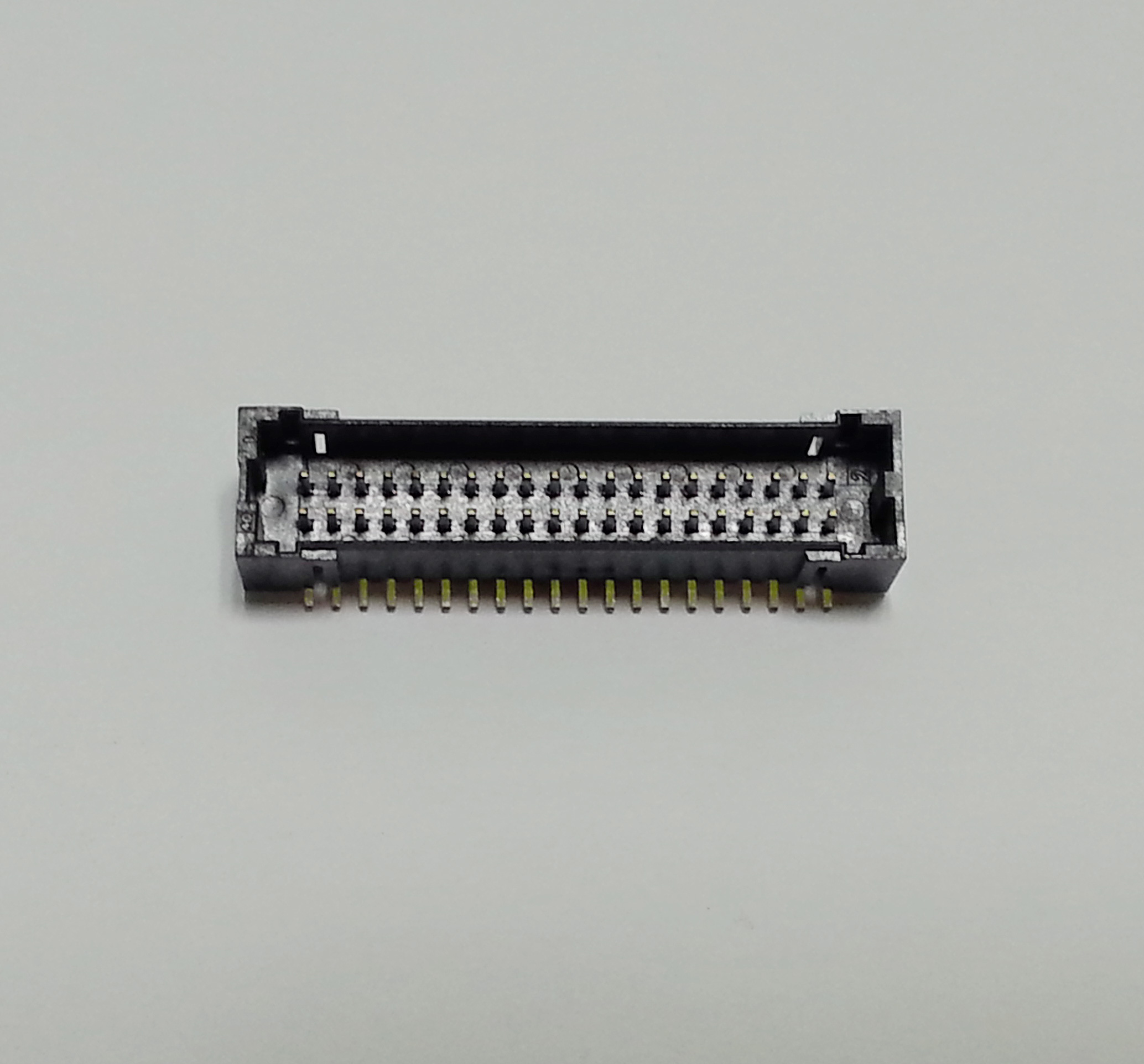

7500-40-X pitch 1.50mm Header SMT Type Conn.,

SPECIFICATION:

1.Material:
1.1 Housing: LCP+30%G.F. UL94V-0, BLACK COLOR.
1.2 CAP: LCP+30%G.F.UL94V-0, BLACK COLOR.
1.2 CONTACT: BRASS,100u"MIN. TIN PLATED.
                          50u"MIN.NICKEL UNDERPLATED OVERALL.

2.NOTE:
2.1 RESISTANCE TO SOLDERING HEAT: 265°C FOR 10 SECONDS.
2.2 THIS COMPONENT AND ITS HOMOGENEOUS SUBCOMPONENTS ARE RoHS COMPUANT.
