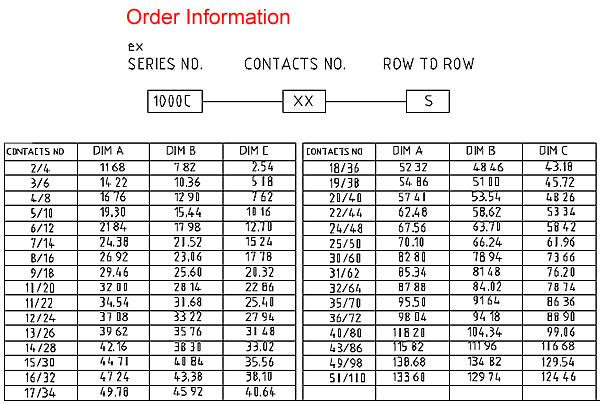

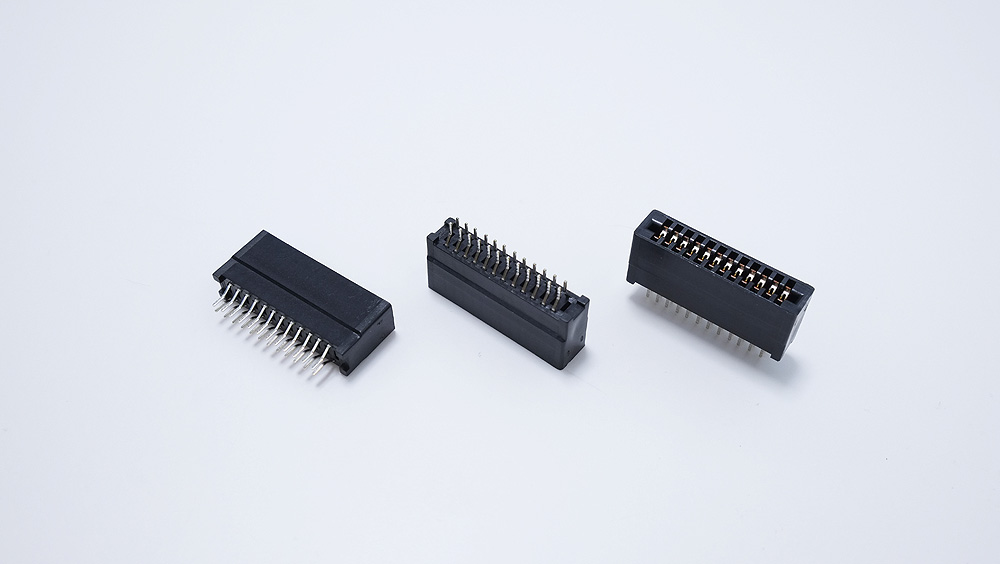

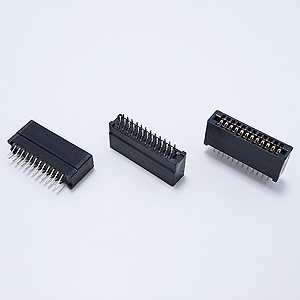

Products Card Edge Connector Pitch 2.54 mm 1000C Series 2.54 mm Card Extender Type DESCRIPTION:Pitch 2.54 mm Card Extender TypeFEATURE:Insulator Material: Glass-Filled PBT UL94V-0Contact Material: Phosphor Bronze Plating: Selective Gold Plating On Contact Area 100μ" Tin Plating On Tail Section 50μ" Nickel UnderplatingSPECIFICATION:Current Rating: 3 AmperesContact Resistance: 20 Milliohme Max.Insulation Resistance: 5000 Megaohms Min.Voltage Rating: 800VAC 1 MinuteOperation Temperature: -55℃ to + 105℃ Drawing (.PDF) Order / Inquiry Information Please select Items below and click See Catelog for Inquiry. Series No. 1000C Contact No. 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 44 48 50 60 62 64 70 72 80 86 98 110 Tail Length L A = 4.70mm C = 6.10mm F = 14.10mm H = 21.80mm See Catalog Please write down your comment on this product, and click Add to Inquiry List for Inquiry Add to Inquiry List Review Inquiry List Back
