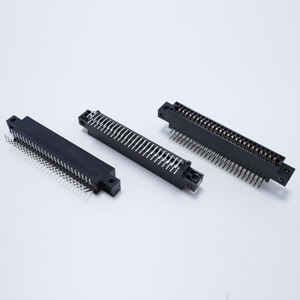

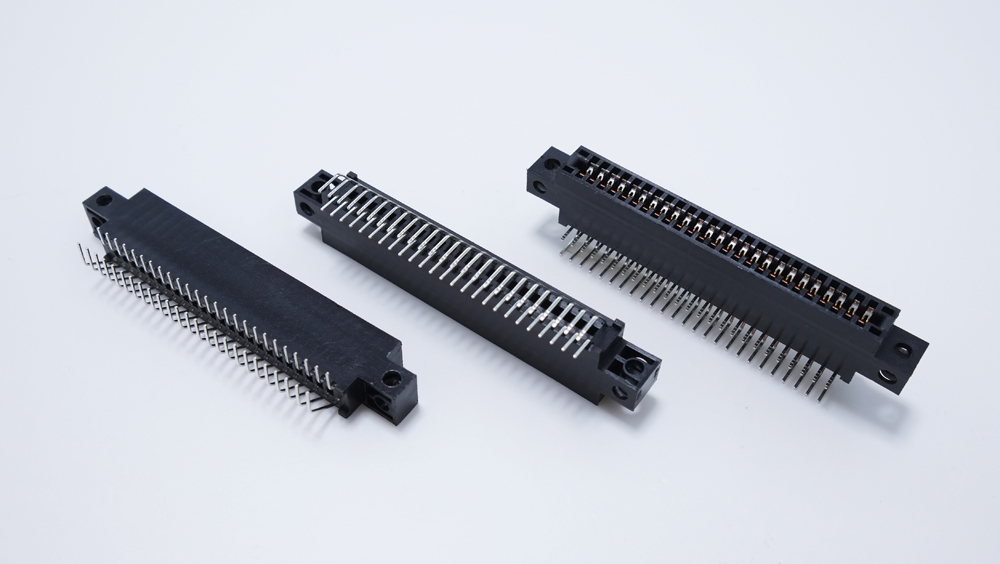

2200 Series 2.54 mm Right Angle Type with Mid Mounting Ears

DESCRIPTION:
Pitch 2.54 mm Right Angle Dip Type
Mid Mounting Ears

FEATURE:
Insulator Material:
    Glass-Filled PBT UL94V-0
Contact Material:
    Phosphor Bronze
Plating:
    Selective Gold Plating On Contact Area
    100μ" Tin Plating On Tail Section
    50μ" Nickel Underplating

SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to + 105℃
Insulation Farce: 412 grams max per pair
Withdrawal Force: 32 grams min per pair
