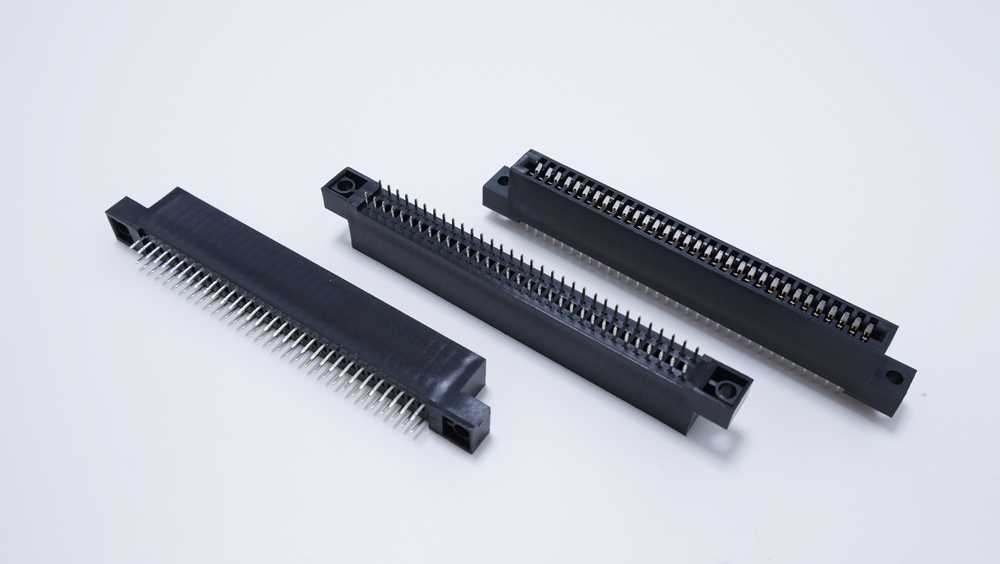

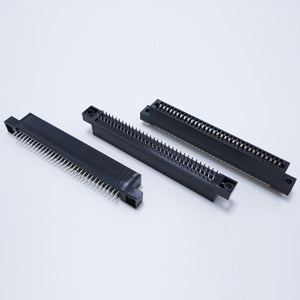

2300 Series
2.54 x 5.08 mm Dip Type with Low Mounting Ears
DESCRIPTION: Pitch 2.54 mm Straight Dip Type Low Mounting Ears
FEATURE: Insulator Material: Glass-Filled PBT UL94V-0 Contact Material: Phosphor Bronze Plating: Selective Gold Plating On Contact Area 100μ" Tin Plating On Tail Section 50μ" Nickel Underplating
SPECIFICATION: Current Rating: 3 Amperes Contact Resistance: 20 Milliohme Max. Insulation Resistance: 5000 Megaohms Min. Voltage Rating: 800VAC 1 Minute Operation Temperature: -55℃ to + 105℃ Insulation Farce: 412 grams max per pair Withdrawal Force: 32 grams min per pair
