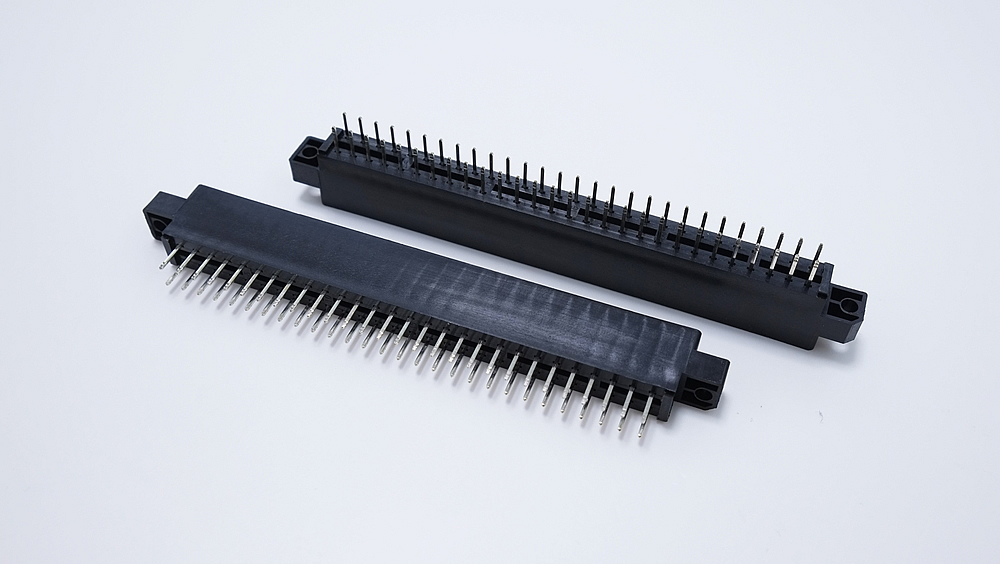

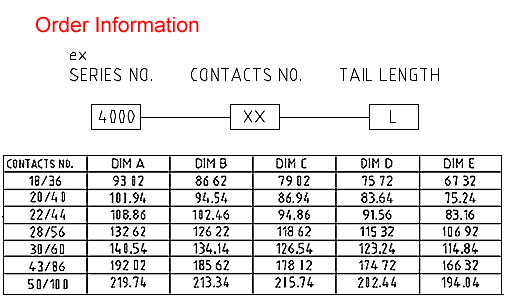

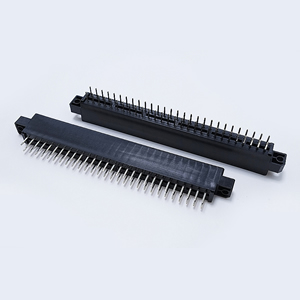

Products Card Edge Connector Pitch 3.96 mm 4000 Series 3.96 x 5.08 mm Dip Type with Mid Mounting Ears DESCRIPTION:Pitch 3.96 mm Straight Dip TypeMid Mounting EarsFEATURE:Insulator Material: Glass-Filled PBT UL94V-0Contact Material: Phosphor Bronze Plating: Selective Gold Plating On Contact Area 100μ" Tin Plating On Tail Section 50μ" Nickel UnderplatingSPECIFICATION:Current Rating: 3 AmperesContact Resistance: 20 Milliohme Max.Insulation Resistance: 5000 Megaohms Min.Voltage Rating: 800VAC 1 MinuteOperation Temperature: -55℃ to + 105℃Insertion Force: 412 grams Max. Per PairWithdrawal Force: 32 grams Min. Per Pair Drawing(.PDF) Order / Inquiry Information Please select Items below and click See Catelog for Inquiry. Series No. 4000 Contacts No. 36 40 44 56 60 86 100 Tail Length L A = 7.40mm B = 19.60mm See Catalog Please write down your comment on this product, and click Add to Inquiry List for Inquiry Add to Inquiry List Review Inquiry List Back
