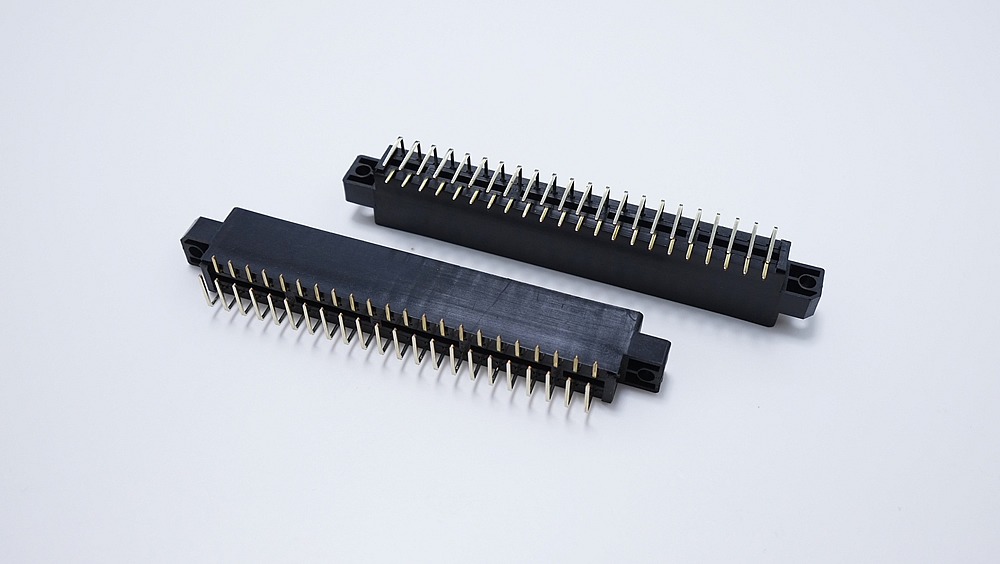

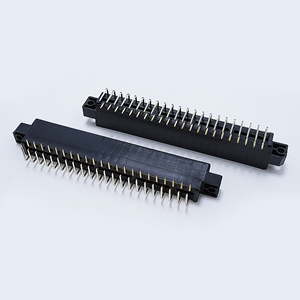

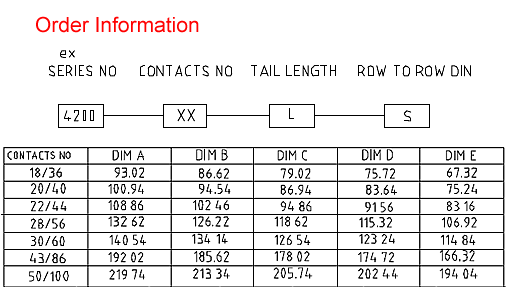

Products Card Edge Connector Pitch 3.96 mm 4200 Series 3.96 mm Right Angle Type with Mid Mounting Ears DESCRIPTION:Pitch 3.96 mm Right Angle TypeMid Mounting EarsFEATURE:Insulator Material: Glass-Filled PBT UL94V-0Contact Material: Phosphor Bronze Plating: Selective Gold Plating On Contact Area 100μ" Tin Plating On Tail Section 50μ" Nickel UnderplatingSPECIFICATION:Current Rating: 3 AmperesContact Resistance: 20 Milliohme Max.Insulation Resistance: 5000 Megaohms Min.Voltage Rating: 800VAC 1 MinuteOperation Temperature: -55℃ to + 105℃Insertion Force: 412 grams Max. Per PairWithdrawal Force: 32 grams Min. Per Pair Drawing(.PDF) Order / Inquiry Information Please select Items below and click See Catelog for Inquiry. Series No. 4200 Contacts No. 36 40 44 56 60 86 100 Tail Length L A = 3.10mm B = 3.50mm Row to Row Din S A = 5.08mm B = 3.96mm See Catalog Please write down your comment on this product, and click Add to Inquiry List for Inquiry Add to Inquiry List Review Inquiry List Back
