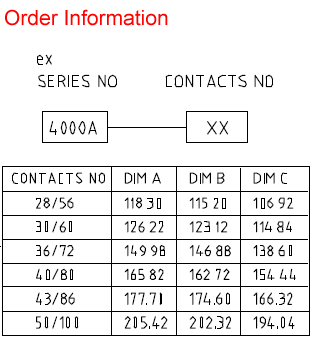

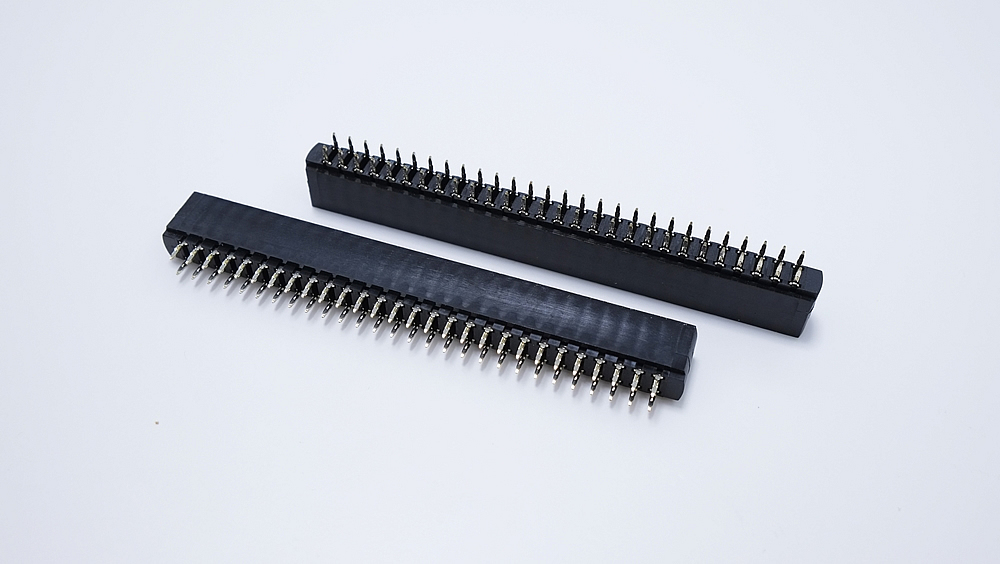

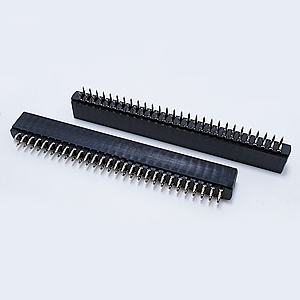

Products Card Edge Connector Press-Fit Type 4000A Series 3.96 x 5.08 mm Press-Fit Type DESCRIPTION:Pitch 3.96 mm Press-Fit TypeFEATURE:Insulator Material: Glass-Filled PBT UL94V-0Contact Material: Phosphor Bronze Plating: Selective Gold Plating On Contact Area 100μ" Tin Plating On Tail Section 50μ" Nickel UnderplatingSPECIFICATION:Current Rating: 3 AmperesContact Resistance: 10 Milliohme Max.Insulation Resistance: 5000 Megaohms Min.Voltage Rating: 1800VAC 1 MinuteOperation Temperature: -55℃ to + 105℃Daughter Board Insertion Force: 0.45 kgs Max. Per PairDaughter Board Withdrawal Force: 0.028 kgs Min. Per PairContact Tail Insertion Into Hole: 40 lbs Max.Contact Tail Retention In Hole: 10 lbs Min.RECOMMENDED PCB HOLEDrilled Hole: 1.15±0.03mmCopper Plate 0.025 mm Min. ThicknessTin/Lead PlatingFinish Hole Diameter: 1.02+0.08 mm Drawing(.PDF) Order / Inquiry Information Please select Items below and click See Catelog for Inquiry. Series No. 4000A Contact No. 56 60 72 80 86 100 See Catalog Please write down your comment on this product, and click Add to Inquiry List for Inquiry Add to Inquiry List Review Inquiry List Back
