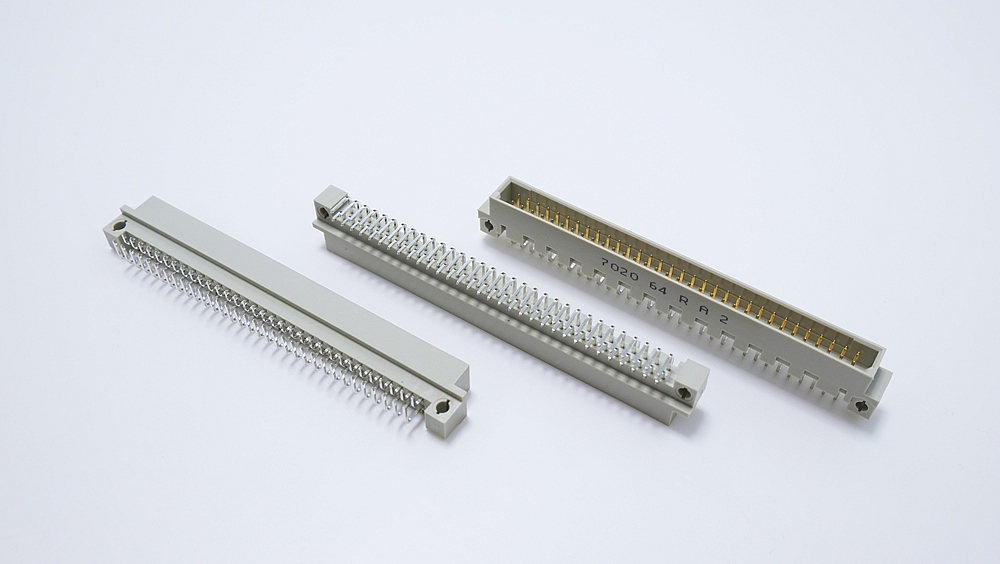

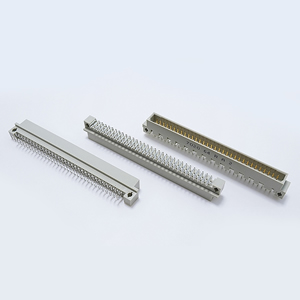

7020 Male B Type

FEATURE:
Insulator Material: PBT UL94V-0
Contact Material: Brass
Board-Lock (Optional): 100μ" Tin Plating Min.
Plating: Selective Gold Plating On Contact Area
                  100μ" Tin Plating On Solder Area
                  50μ" Nickel Min. Underplating

SPECIFICATION:
Current Rating: 20℃ 2A, 70℃ 1A, 100℃ 0.5A
Contact Resistance: 30 Milliohms Max. at DC 100mA
Insulation Resistance: 1000 Megaohms Min. At DC500V
Dielectric Voltage: AC 1000V For 1 Minute
Operation Voltage: 250VAC
Operation Temperature: -55℃ to +125℃

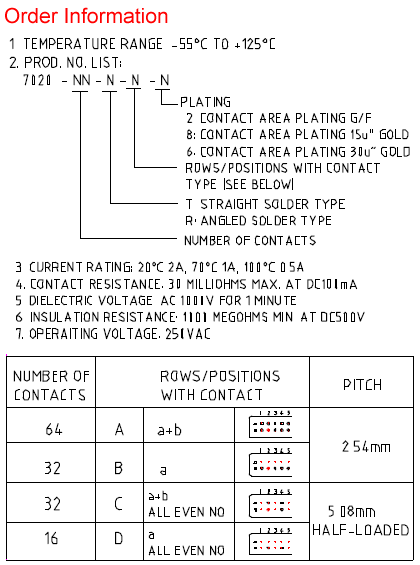

*2 Types Available: Straight & Right Angled Solder Type
