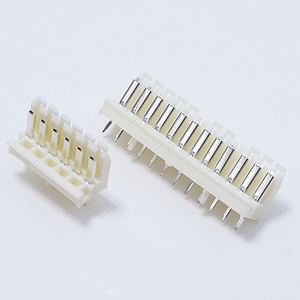

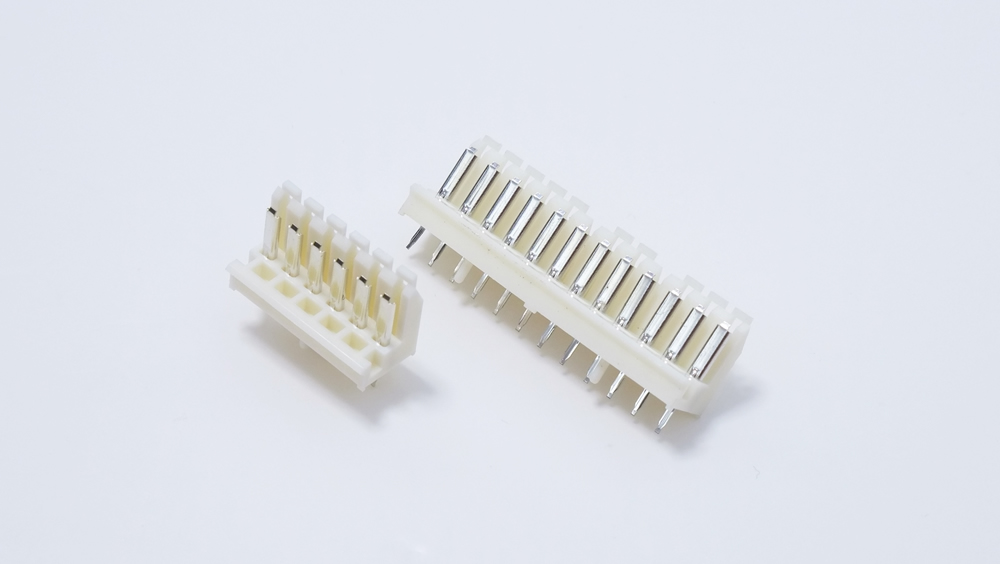

• P100 Pitch 3.96 mm Power Base Connector

    P100 Pitch 3.96 mm Power Base Connector

    FEATURE:
    Insulator Material:
        Nylon 66 UL94V-0
    Contact Material:
        Brass or Phosphor Bronze
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        30μ" Nickel Underplating

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 4 lbs (1.82 kg) Min. Per Contact
    Operation Temperature: -40℃ to + 105℃
    Dimensioning Shall Be Interpreted Per ANSI Y14.5M-1994.
    The Lot Identification Code Is Marking By Black Printing

    Drawing(.PDF)

P100 Pitch 3.96 mm Power Base Connector

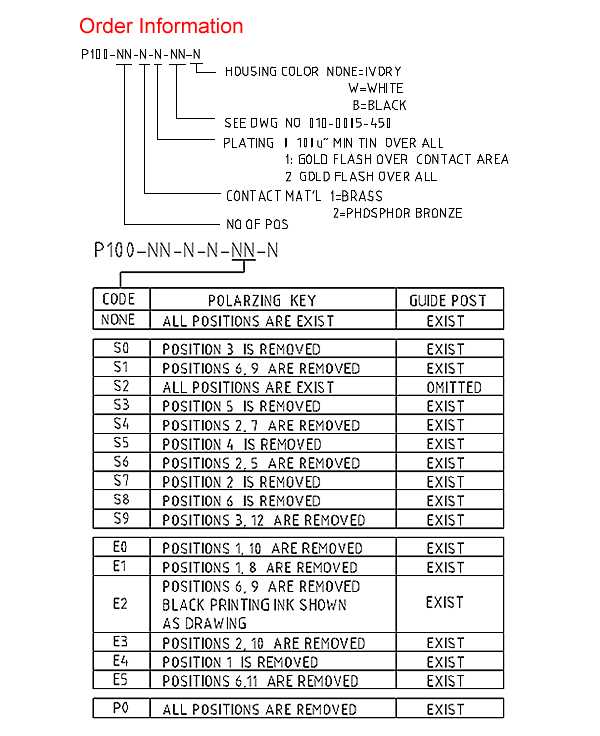

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
SERIES P100
No. Of POS
Contact Material
Plating
DWG
Housing Color
See Catalog
