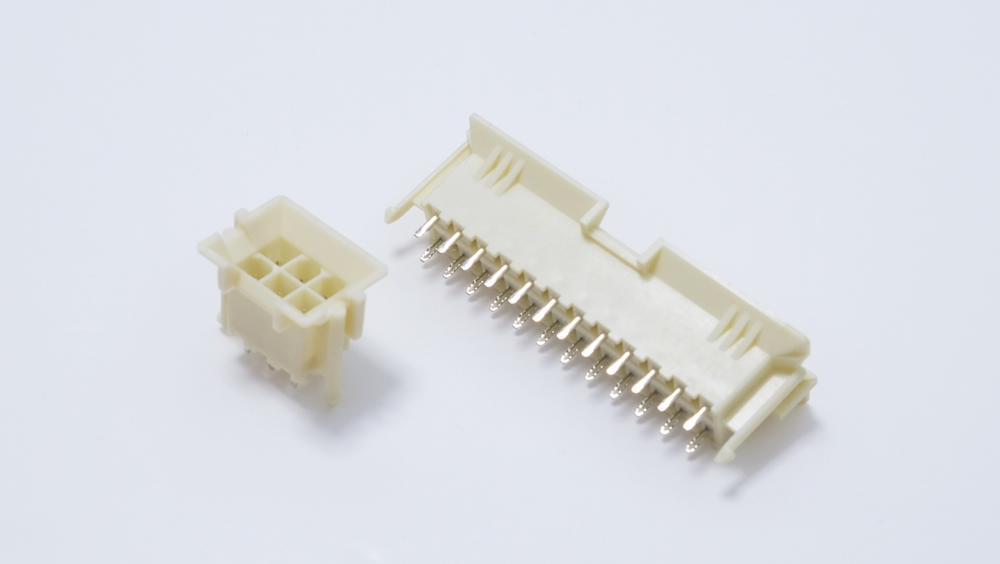

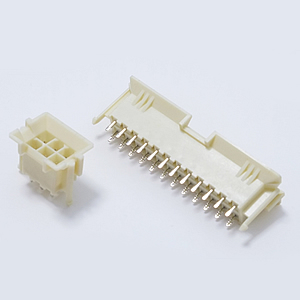

• P110 Pitch 4.20 mm, Row to Row 5.50 mm with Pegs

    P110 Pitch 4.20 mm, Row to Row 5.50 mm with Pegs

    FEATURE:
    Insulator Material:
        Nylon 66 UL94V-0
    Contact Material:
        Copper Alloy
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        30μ" Nickel Underplating

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 1.36 kgf Min
    Operation Temperature: -40℃ to + 105℃
    Dimensioning Shall Be Interpreted Per ANSI Y14.5M-1994.

    Drawing(.PDF)

P110 Pitch 4.20 mm, Row to Row 5.50 mm with Pegs

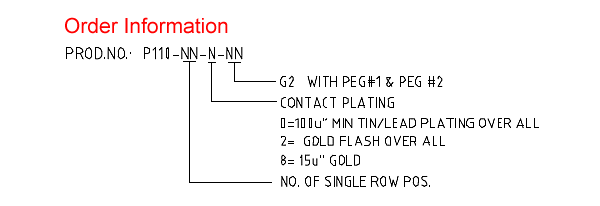

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P110
No. Of Single Row POS
Contact Plating
OPTION G2 = With Peg#1 & Peg #2
