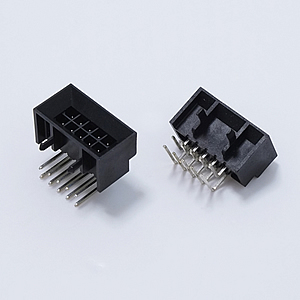

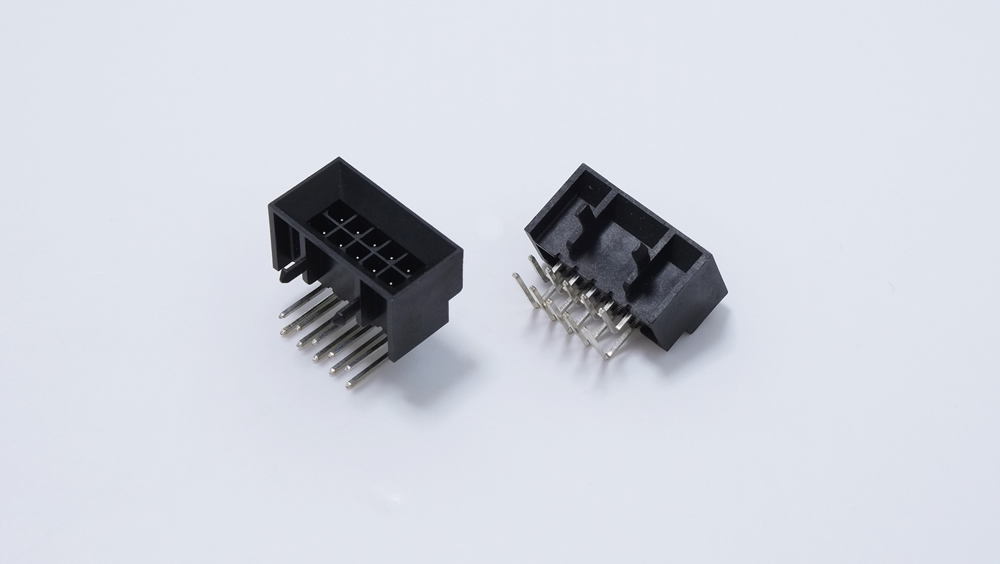

• P550 Pitch 3.00 mm, Row to Row 3.00 mm R/A Type with Pegs

    P550 Pitch 3.00 mm, Row to Row 3.00 mm R/A Type with Pegs

    FEATURE:
    Insulator Material:
        PA 6T + 30% G/F UL94V-0
    Contact Material:
        Brass
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        50μ" Nickel Underplating

    ELECTRICAL SPECTIFICATION:
    Current Rating: 5A
    Voltage Rating: 250V
    Contact Resistance: 10 Milliohms Max.
    Insulation Resistance: 1000 Megohms Min.
    Dielectric Voltage: 1500 VAC 1 Minute

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 0.91 kgf Min.
    Operation Temperature: -40℃ to + 105℃

    Drawing(.PDF)

P550 Pitch 3.00 mm, Row to Row 3.00 mm R/A Type with Pegs

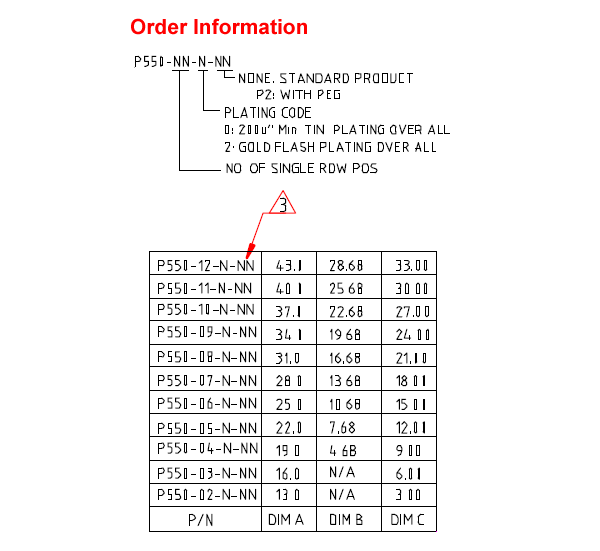

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P550
No. Of Single Row POS
Plated Code
PEG
