Pitch 2.54 mm
-

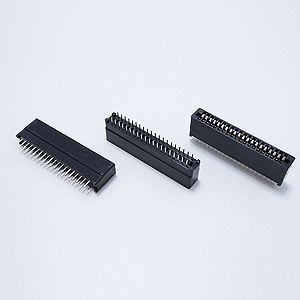

1000 Series 2.54 x 5.08 mm Dip Type
DESCRIPTION:
Pitch 2.54 mm Vertical Dip Type
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to + 105℃
Insulation Farce: 412 grams max per pair
Withdrawal Force: 32 grams min per pair -

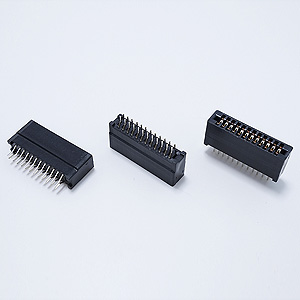

1000C Series 2.54 mm Card Extender Type
DESCRIPTION:
Pitch 2.54 mm Card Extender Type
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to + 105℃ -

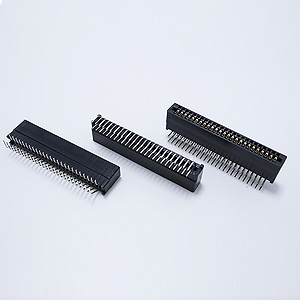

1200 Series 2.54 mm Right Angle Type
DESCRIPTION:
Pitch 2.54 mm Right Angle Dip Type
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to + 105℃
Insulation Farce: 412 grams max per pair
Withdrawal Force: 32 grams min per pair -

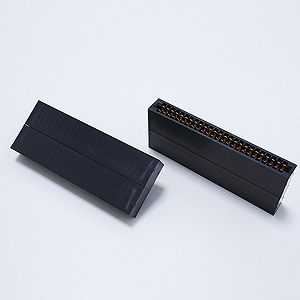

1000DL Series 2.54 mm Female Double Sided Type
DESCRIPTION:
Pitch 2.54 mm Female Double Sided
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 30 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to + 105℃ -

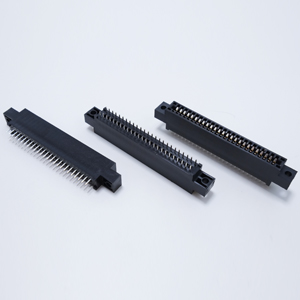

2000 Series 2.54 x 5.08 mm Dip Type with Mid Mounting Ears
DESCRIPTION:
Pitch 2.54 mm Vertical Dip Type
Mid Mounting Ears
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to + 105℃
Insulation Farce: 412 grams max per pair
Withdrawal Force: 32 grams min per pair -
2000C Series 2.54 mm Card Extender Type with Mid Mounting Ears
DESCRIPTION:
Pitch 2.54 mm Card Extender Type
Mid Mounting Ears
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to + 105℃
Insulation Farce: 412 grams max per pair
Withdrawal Force: 32 grams min per pair -

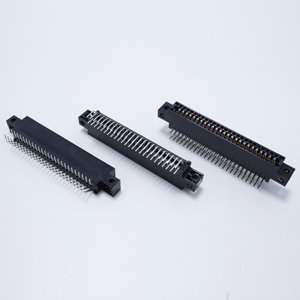

2200 Series 2.54 mm Right Angle Type with Mid Mounting Ears
DESCRIPTION:
Pitch 2.54 mm Right Angle Dip Type
Mid Mounting Ears
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to + 105℃
Insulation Farce: 412 grams max per pair
Withdrawal Force: 32 grams min per pair -

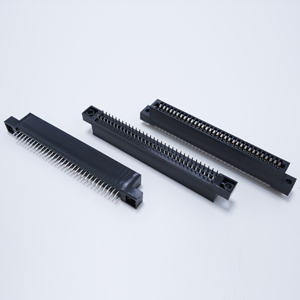

2300 Series 2.54 x 5.08 mm Dip Type with Low Mounting Ears
DESCRIPTION:
Pitch 2.54 mm Straight Dip Type
Low Mounting Ears
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to + 105℃
Insulation Farce: 412 grams max per pair
Withdrawal Force: 32 grams min per pair -

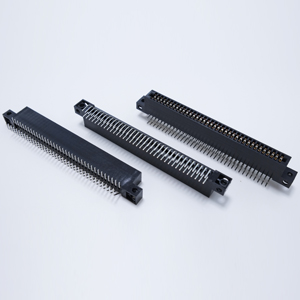

2300R Series 2.54 mm Right Angle Type with Low Mounting Ears
DESCRIPTION:
Pitch 2.54 mm Right Angle Type
Low Mounting Ears
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to + 105℃
Insulation Farce: 412 grams max per pair
Withdrawal Force: 32 grams min per pair
