• Power Wafer

  • Pitch 3.96 mm Power Base Connector

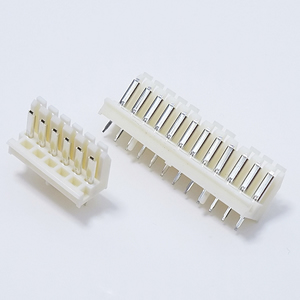

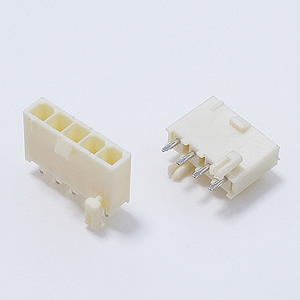

    P100 Pitch 3.96 mm Power Base Connector

    FEATURE:
    Insulator Material:
        Nylon 66 UL94V-0
    Contact Material:
        Brass or Phosphor Bronze
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        30μ" Nickel Underplating

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 4 lbs (1.82 kg) Min. Per Contact
    Operation Temperature: -40℃ to + 105℃
    Dimensioning Shall Be Interpreted Per ANSI Y14.5M-1994.
    The Lot Identification Code Is Marking By Black Printing

    Inquiry Info. Drawing(.PDF)

  • Pitch 4.20 mm, Row to Row 5.50 mm with Pegs

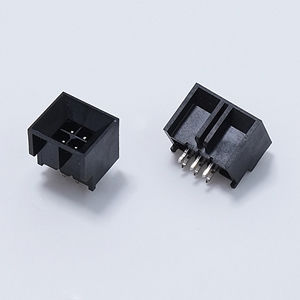

    P110 Pitch 4.20 mm, Row to Row 5.50 mm with Pegs

    FEATURE:
    Insulator Material:
        Nylon 66 UL94V-0
    Contact Material:
        Copper Alloy
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        30μ" Nickel Underplating

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 1.36 kgf Min
    Operation Temperature: -40℃ to + 105℃
    Dimensioning Shall Be Interpreted Per ANSI Y14.5M-1994.

    Inquiry Info. Drawing(.PDF)

  • Pitch 4.20 mm, Row to Row 4.20 mm

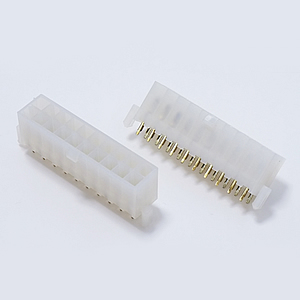

    P111 Pitch 4.20 mm, Row to Row 4.20 mm

    FEATURE:
    Insulator Material:
        Nylon 66 UL94V-0
    Contact Material:
        Brass
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        30μ" Nickel Underplating

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 1.36 kgf Min. Per Contact
    Operation Temperature: -40℃ to + 105℃
    Dimensioning Shall Be Interpreted Per ANSI Y14.5M-1994.

    Inquiry Info. Drawing(.PDF)

  • Pitch 4.20 mm, Row to Row 5.50 mm with Pegs & Posts

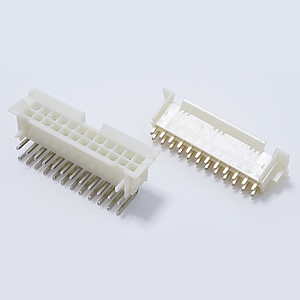

    P112 Pitch 4.20 mm, Row to Row 5.50 mm with Pegs & Posts

    FEATURE:
    Insulator Material:
        PA 66 UL94V-0
        PA 6T UL94V-0
    Contact Material:
        Brass or Phosphor Bronze
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        30μ" Nickel Underplating

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 1.36 kgf Min. Per Contact
    Operation Temperature: -40℃ to + 105℃
    Dimensioning Shall Be Interpreted Per ANSI Y14.5M-1994.

    Inquiry Info. Drawing(.PDF)

  • Pitch 4.20 mm, Row to Row 5.50 R/A Type with Pegs

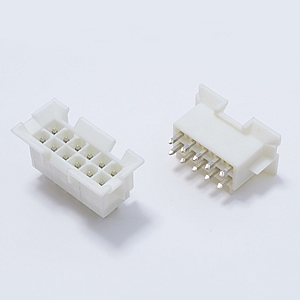

    P200 Pitch 4.20 mm, Row to Row 5.50 R/A Type with Pegs

    FEATURE:
    Insulator Material:
        Nylon 66 UL94V-0
    Contact Material:
        Brass
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        50μ" Nickel Underplating

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 1.36 kgf Min. Per Contact
    Operation Temperature: -40℃ to + 105℃
    Dimensioning Shall Be Interpreted Per ANSI Y14.5M-1994.

    Inquiry Info. Drawing(.PDF)

  • Pitch 4.20 mm Power pitch 5.50 R/A Type with Pegs

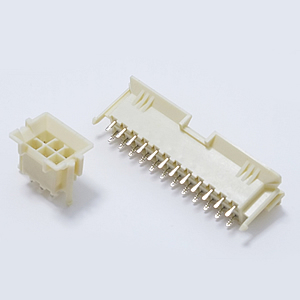

    P201 Pitch 4.20 mm Power pitch 5.50 R/A Type with Pegs

    FEATURE:
    Insulator Material:
        Nylon 66 UL94V-0
    Contact Material:
        Brass
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        50μ" Nickel Underplating

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 1.36 kgf Min. Per Contact
    Operation Temperature: -40℃ to + 105℃
    Dimensioning Shall Be Interpreted Per ANSI Y14.5M-1994.

    Inquiry Info. Drawing(.PDF)

  • Pitch 4.20 mm Single Row with pegs

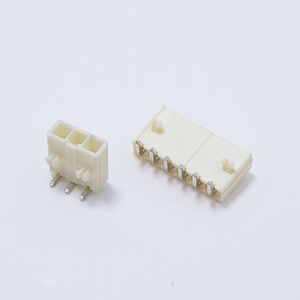

    P300 Pitch 4.20 mm Single Row with pegs

    FEATURE:
    Insulator Material:
        PA 66 UL94V-0
    Contact Material:
        Brass
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        50μ" Nickel Underplating

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 1.36 kgf Min. Per Contact
    Operation Temperature: -40℃ to + 105℃
    Dimensioning Shall Be Interpreted Per ANSI Y14.5M-1994.

    Inquiry Info. Drawing(.PDF)

  • Pitch 4.20 mm R/A Type Single Row with pegs

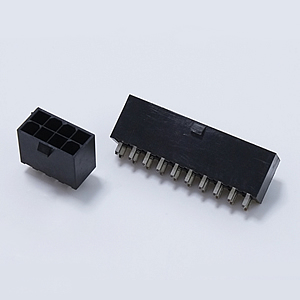

    P350 Pitch 4.20 mm R/A Type Single Row with pegs

    FEATURE:
    Insulator Material:
        PA 66 UL94V-0
    Contact Material:
        Brass
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        50μ" Nickel Underplating

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 1.36 kgf Min. Per Contact
    Operation Temperature: -40℃ to + 105℃
    Dimensioning Shall Be Interpreted Per ANSI Y14.5M-1994.

    Inquiry Info. Drawing(.PDF)

  • Pitch 4.20 mm, Row to Row 4.20 mm

    P400 Pitch 4.20 mm, Row to Row 4.20 mm

    FEATURE:
    Insulator Material:
        PA 6T UL94V-0
    Contact Material:
        Brass
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        30μ" Nickel Underplating

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 1.36 kgf Min. Per Contact
    Operation Temperature: -40℃ to + 105℃
    Dimensioning Shall Be Interpreted Per ANSI Y14.5M-1994.

    Inquiry Info. Drawing(.PDF)

  • Pitch 3.00 mm, Row to Row 3.00 mm with Posts

    P500 Pitch 3.00 mm, Row to Row 3.00 mm with Posts

    FEATURE:
    Insulator Material:
        PA 6T UL94V-0
    Contact Material:
        Brass
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        50μ" Nickel Underplating

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 0.91 kgf Min.
    Operation Temperature: -40℃ to + 105℃

    Inquiry Info. Drawing(.PDF)

Total of 11 results
