Press-Fit Type
-

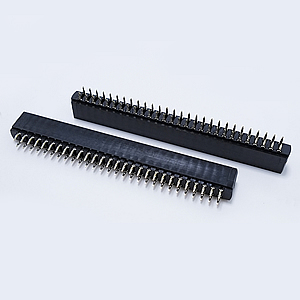

1100 Series 2.54 x 5.08 mm Press-Fit Type
DESCRIPTION:
Pitch 2.54 mm Press-Fit Type
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 10 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Dielectric Withstanding Voltage: 1200VAC 1rms at Sea Level Between Adjacent Contacts
Operation Temperature: -55℃ to + 105℃
RECOMMENDED PCB HOLE
Drilled Hole: 1.15+0.00/-0.03 mm
Copper Plate 0.025~0.075 mm
Tin/Lead Plating
Finish Hole Diameter: 1.00+0.05/-0.02 mmInquiry Info. High Profile Insulator Type (.PDF) Low Profile Insulator Type (.PDF)
-

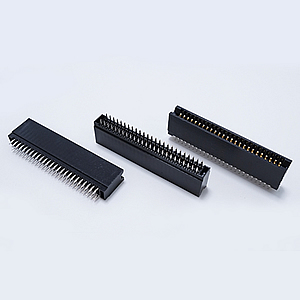

3100 Series 3.175 x 6.35 mm Press-Fit Type
DESCRIPTION:
Pitch 3.175 mm Press-Fit Type
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to + 105℃
Insertion Force: 412 grams Max. Per Pair
Withdrawal Force: 32 grams Min. Per Pair
RECOMMENDED PCB HOLE
Drilled Hole: 1.15+0.00/-0.03 mm
Copper Plate 0.025~0.075 mm
Tin/Lead Plating
Finish Hole Diameter: 1.00+0.05/-0.02 mm -

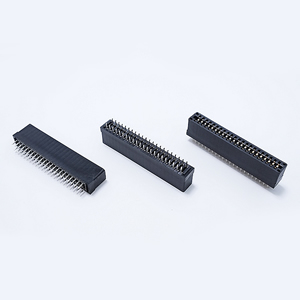

4000A Series 3.96 x 5.08 mm Press-Fit Type
DESCRIPTION:
Pitch 3.96 mm Press-Fit Type
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 10 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 1800VAC 1 Minute
Operation Temperature: -55℃ to + 105℃
Daughter Board Insertion Force: 0.45 kgs Max. Per Pair
Daughter Board Withdrawal Force: 0.028 kgs Min. Per Pair
Contact Tail Insertion Into Hole: 40 lbs Max.
Contact Tail Retention In Hole: 10 lbs Min.
RECOMMENDED PCB HOLE
Drilled Hole: 1.15±0.03mm
Copper Plate 0.025 mm Min. Thickness
Tin/Lead Plating
Finish Hole Diameter: 1.02+0.08 mm
