Pitch 3.96 mm
-

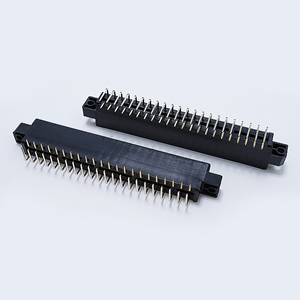

4000 Series 3.96 x 5.08 mm Dip Type with Mid Mounting Ears
DESCRIPTION:
Pitch 3.96 mm Straight Dip Type
Mid Mounting Ears
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to + 105℃
Insertion Force: 412 grams Max. Per Pair
Withdrawal Force: 32 grams Min. Per Pair -

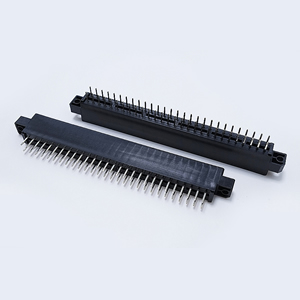

4200 Series 3.96 mm Right Angle Type with Mid Mounting Ears
DESCRIPTION:
Pitch 3.96 mm Right Angle Type
Mid Mounting Ears
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to + 105℃
Insertion Force: 412 grams Max. Per Pair
Withdrawal Force: 32 grams Min. Per Pair -

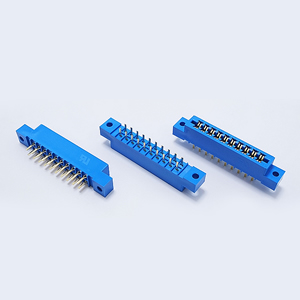

4000D Series 3.96 mm Dip Type with Low Mounting Ears
DESCRIPTION:
Pitch 3.96 mm Dip Type
Low Mounting Ears
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Brass
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -40℃ to +105℃ -
4000S Series 3.96 mm Solder Type with Low Mounting Ears
DESCRIPTION:
Pitch 3.96 mm Solder Type
Low Mounting Ears
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Brass
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -40℃ to +105℃ -

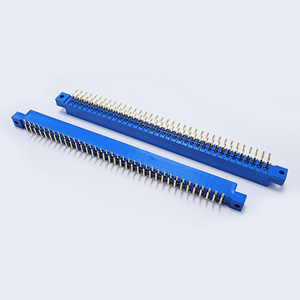

4000R Series 3.96 mm Right Angle Type with Low Mount Ears
DESCRIPTION:
Pitch 3.96 mm Right Angle Type
Low Mounting Ears
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Brass
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to +105℃ -

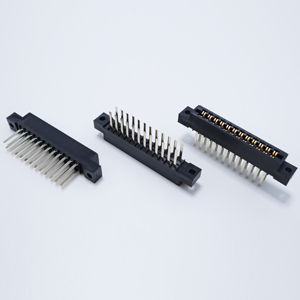

4000SD Series 3.96 mm Solder Dip Type with Low Mounting Ears
DESCRIPTION:
Pitch 3.96 mm Solder Dip Type
Low Mounting Ears
FEATURE:
Insulator Material:
Glass-Filled PBT UL94V-0
Contact Material:
Phosphor Bronze
Plating:
Selective Gold Plating On Contact Area
100μ" Tin Plating On Tail Section
50μ" Nickel Underplating
SPECIFICATION:
Current Rating: 3 Amperes
Contact Resistance: 20 Milliohme Max.
Insulation Resistance: 5000 Megaohms Min.
Voltage Rating: 800VAC 1 Minute
Operation Temperature: -55℃ to +105℃
