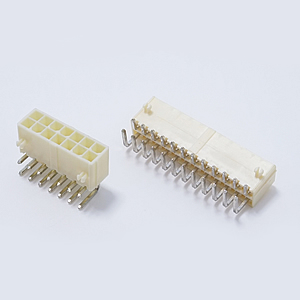

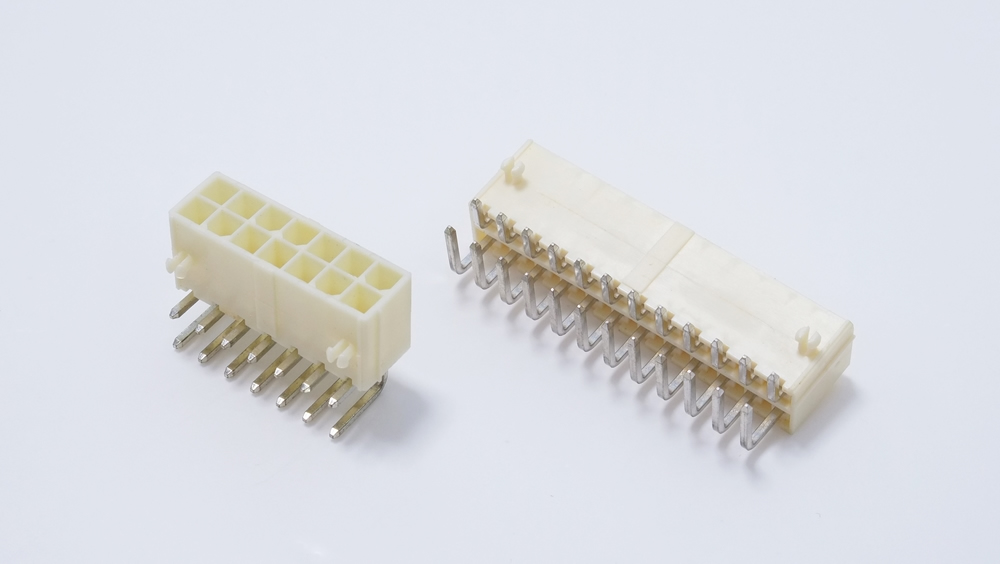

    P201 Pitch 4.20 mm Power pitch 5.50 R/A Type with Pegs

    FEATURE:
    Insulator Material:
        Nylon 66 UL94V-0
    Contact Material:
        Brass
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        50μ" Nickel Underplating

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 1.36 kgf Min. Per Contact
    Operation Temperature: -40℃ to + 105℃
    Dimensioning Shall Be Interpreted Per ANSI Y14.5M-1994.

    Drawing(.PDF)

P201 Pitch 4.20 mm Power pitch 5.50 R/A Type with Pegs

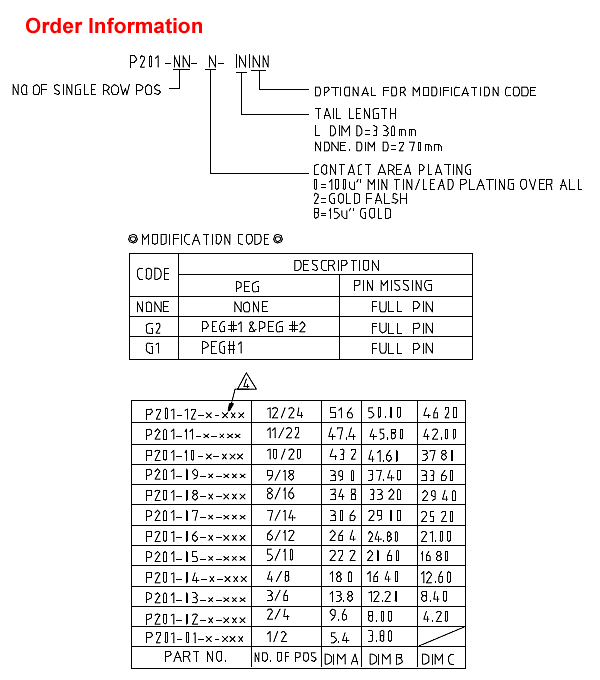

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P201
No. Of Single Row POS
Contact Area Plating
Tail Length L
Optional For Modification Code
