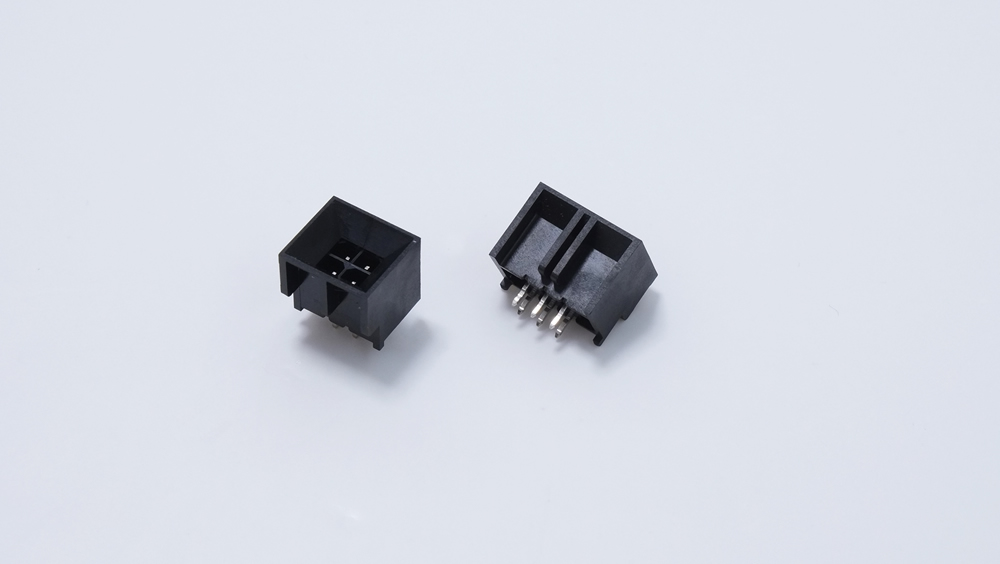

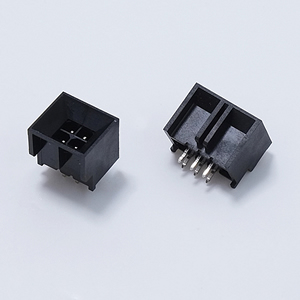

• P500 Pitch 3.00 mm, Row to Row 3.00 mm with Posts

    P500 Pitch 3.00 mm, Row to Row 3.00 mm with Posts

    FEATURE:
    Insulator Material:
        PA 6T UL94V-0
    Contact Material:
        Brass
    Plating:
        Selective Gold Plating On Contact Area
        100μ" Tin Plating On Tail Section
        50μ" Nickel Underplating

    NOTES (UNLESS OTHERWISE SPECIFIED):
    Contact Retention Force: 0.91 kgf Min.
    Operation Temperature: -40℃ to + 105℃

    Drawing(.PDF)

P500 Pitch 3.00 mm, Row to Row 3.00 mm with Posts

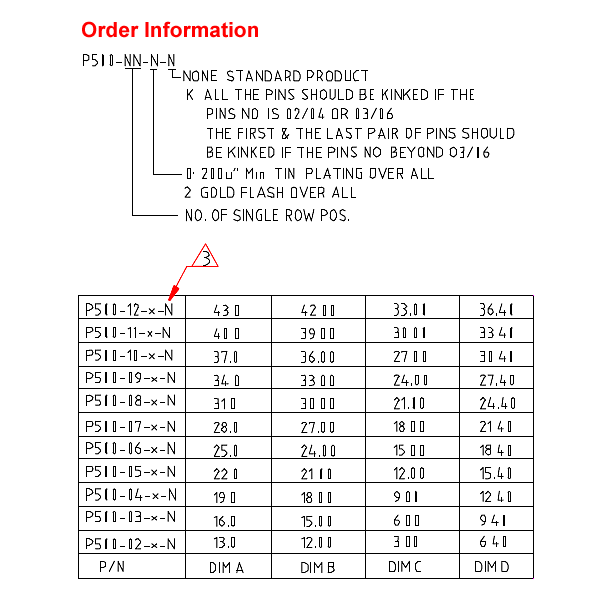

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P500
No. Of Single Row POS
Plating
Kink
